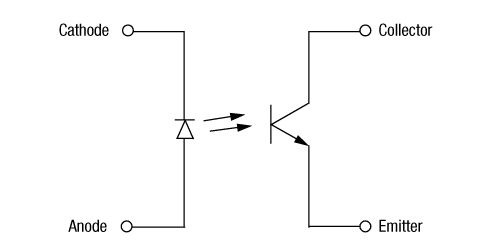

Phototransistor

6-pin

4-pin

VF at IF = 10mA
at 25°C
CTR at VCE = 5V BVCEO at
IF = 1mA
Isolation
Voltage
Radiation
Tolerant
Part Number Package Min (V) Max (V) IF (mA) Min (%) Max (%) Min (V) VDC
Max (V)
IBI100 6-pin Hybrid 0.9 1.7 1 100 30 ±1500  N/A
IBS049 4-pin Hermetic LCC 1.2 1.8 1 200 1200 60 ±1000 radiation-shield-24
IBS010 4-pin Hermetic LCC 09 1.6 1 100 60 ±1000  N/A
IBS249 6-pin Hermetic LCC 1.2 1.8 1 200 1200 40 ±1000 radiation-shield-24
MCT4 Hermetic TO-72 0.5 1.5 10 1500 30 ±1000  N/A
MCT4R* Hermetic TO-72 0.5 1.5 10 1500 30 ±1000  N/A
4N48/49 Hermetic TO-5 0.8 1.5 1 50 40 ±1000  N/A
IBH249 Hermetic TO-5 1.4 1.8 1 200 1200 40 ±1000 radiation-shield-24
4N22U 6-pin Hermetic LCC 0.8 1.3 10 25 35 ±1000 radiation-shield-24
4N23U 6-pin Hermetic LCC 0.8 1.3 10 60 35 ±1000 radiation-shield-24
4N24U 6-pin Hermetic LCC 0.8 1.3 10 100 35 ±1000 radiation-shield-24
4N47U 6-pin Hermetic LCC 0.8 1.5 1 50 40 ±1000 radiation-shield-24
4N48U 6-pin Hermetic LCC 0.8 1.5 1 100 40 ±1000 radiation-shield-24
4N49U 6-pin Hermetic LCC 0.8 1.5 1 200 40 ±1000 radiation-shield-24
