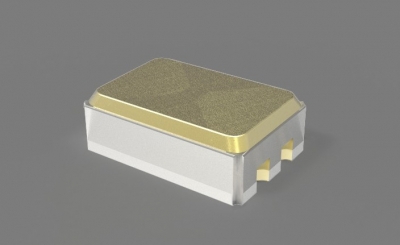

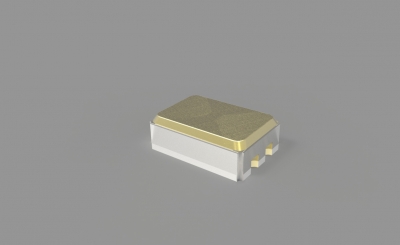

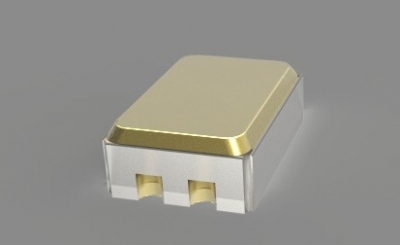

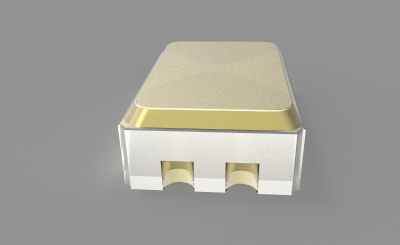

IBS049 4-pin Hermetic LCC
| VF at IF = 10mA at 25°C | CTR at VCE = 5V | BVCEO at IF = 1mA | Isolation Voltage | Radiation Tolerant | |||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Package | Min (V) | Max (V) | IF (mA) | Min (%) | Max (%) | Min (V) | VDC Max (V) | |
| IBS049 | 4-pin Hermetic LCC | 1.2 | 1.8 | 1 | 200 | 1200 | 60 | ±1000 |  |
